Load and use data from UFF/UNV files

This example shows how to load data from UFF (Universal File Format) files, extract time-domain signals, convert them into DPF fields compatible with PyAnsys Sound, and then compute and display dBA levels over time.

The pyuff package (https://pyuff.readthedocs.io/en/latest/) is a PyAnsys Sound optional dependency that can be installed via pip install ansys-sound-core[full].

Note

Only time data blocks of types 58 and 58b, evenly spaced in time, are supported by PyAnsys Sound.

The example processes one UFF file:

• 4 channels_type58b.uff — contains data blocks of type 58b (binary time data)

But it works with ASCII time data blocks (type 58) as well, so you can try it with your own UFF files containing type 58 or type 58b data blocks.

Set up analysis

Setting up the analysis consists of loading the required libraries, connecting to the DPF server, and downloading the necessary data files.

import matplotlib.pyplot as plt
import numpy as np

try:
    import pyuff
except ImportError:
    raise ImportError(
        "The 'pyuff' package is required for this example. "
        "Install it with: pip install ansys-sound-core[full]"
    )

# Load Ansys libraries.
from ansys.sound.core.examples_helpers import download_uff_sample_4_channels_type58b
from ansys.sound.core.server_helpers import connect_to_or_start_server
from ansys.sound.core.signal_utilities import CreateSignalField
from ansys.sound.core.standard_levels import LevelOverTime

# Connect to a remote DPF server or start a local DPF server.
my_server, my_license_context = connect_to_or_start_server(use_license_context=True)

# Download the necessary files for this example.
path_uff_type58b = download_uff_sample_4_channels_type58b()

Load and process a UFF file

In this first part, we load a UFF file containing data blocks of type 58b (binary time data), extract two signals, convert them into DPF fields, and compute dBA levels over time.

Load the UFF file

Load the downloaded UFF file using pyuff.

uff_file_58b = pyuff.UFF(path_uff_type58b)

# List all data blocks.
set_types_58b = uff_file_58b.get_set_types()
n_blocks_58b = len(set_types_58b)
print(f"File '{path_uff_type58b}' contains {n_blocks_58b} data block(s).")
for i, block_type in enumerate(set_types_58b):
    print(f"  Block {i + 1} (index {i}): type {block_type}")

File 'C:\Users\ansys\AppData\Local\Ansys\ansys_sound_core\examples\4_channels_type58b.uff' contains 4 data block(s).
  Block 1 (index 0): type 58
  Block 2 (index 1): type 58
  Block 3 (index 2): type 58
  Block 4 (index 3): type 58

Extract data from all blocks

We read the datasets, extract the time-domain data, the time step (“abscissa_inc”), and the block description. We also verify that the data is evenly spaced.

datasets_58b = []
for idx in range(n_blocks_58b):
    block = uff_file_58b.read_sets(idx)
    # Verify evenly spaced time steps.
    spacing = block.get("abscissa_spacing", None)
    if spacing is not None and spacing != 1:
        raise ValueError(
            f"Block at index {idx} does not have evenly spaced time data "
            f"(abscissa_spacing='{spacing}'). Only evenly spaced time data is supported."
        )
    datasets_58b.append(block)
    block_name = block.get("id1")  # id1 contains the signal name
    time_step = block["abscissa_inc"]
    fs = 1.0 / time_step
    n_samples = len(block["data"])
    print(
        f"\nBlock {idx + 1} (index {idx}):"
        f"\n  Name: {block_name}"
        f"\n  Time step (time_step): {time_step} s"
        f"\n  Sampling frequency: {fs:.1f} Hz"
        f"\n  Number of samples: {n_samples}"
    )

Block 1 (index 0):
  Name: Run up_interior noise_with rpm
  Time step (time_step): 2.26757e-05 s
  Sampling frequency: 44100.1 Hz
  Number of samples: 909956

Block 2 (index 1):
  Name: Run up_interior noise_with rpm_RPM
  Time step (time_step): 2.26757e-05 s
  Sampling frequency: 44100.1 Hz
  Number of samples: 909956

Block 3 (index 2):
  Name: Acceleration_Drive Shaft_rpm
  Time step (time_step): 2.5e-05 s
  Sampling frequency: 40000.0 Hz
  Number of samples: 399999

Block 4 (index 3):
  Name: Acceleration_Drive Shaft_rpm_RPM (40000 Hz)
  Time step (time_step): 2.5e-05 s
  Sampling frequency: 40000.0 Hz
  Number of samples: 399999

Convert to DPF fields using CreateSignalField

For each extracted signal, we create a DPF Field using the CreateSignalField class.

fields_58b = []
signal_names_58b = []
signal_units_58b = []
for i, block in enumerate(datasets_58b):
    signal_data = np.array(block["data"], dtype=np.float64)
    time_step = block["abscissa_inc"]
    fs = 1.0 / time_step
    signal_name = block.get("id1")  # id1 contains the signal name
    signal_unit = block.get("ordinate_axis_units_lab")

    creator = CreateSignalField(data=signal_data, sampling_frequency=fs, unit=signal_unit)
    creator.process()
    field = creator.get_output()

    fields_58b.append(field)
    signal_names_58b.append(signal_name)
    signal_units_58b.append(signal_unit)
    print(
        f"Created DPF Field for '{signal_name}' ({len(signal_data)} samples, "
        f"fs={fs:.1f} Hz), unit='{signal_unit}'."
    )

Created DPF Field for 'Run up_interior noise_with rpm' (909956 samples, fs=44100.1 Hz), unit='Pa'.
Created DPF Field for 'Run up_interior noise_with rpm_RPM' (909956 samples, fs=44100.1 Hz), unit='RPM'.
Created DPF Field for 'Acceleration_Drive Shaft_rpm' (399999 samples, fs=40000.0 Hz), unit='m/s^2'.
Created DPF Field for 'Acceleration_Drive Shaft_rpm_RPM (40000 Hz)' (399999 samples, fs=40000.0 Hz), unit='RPM'.

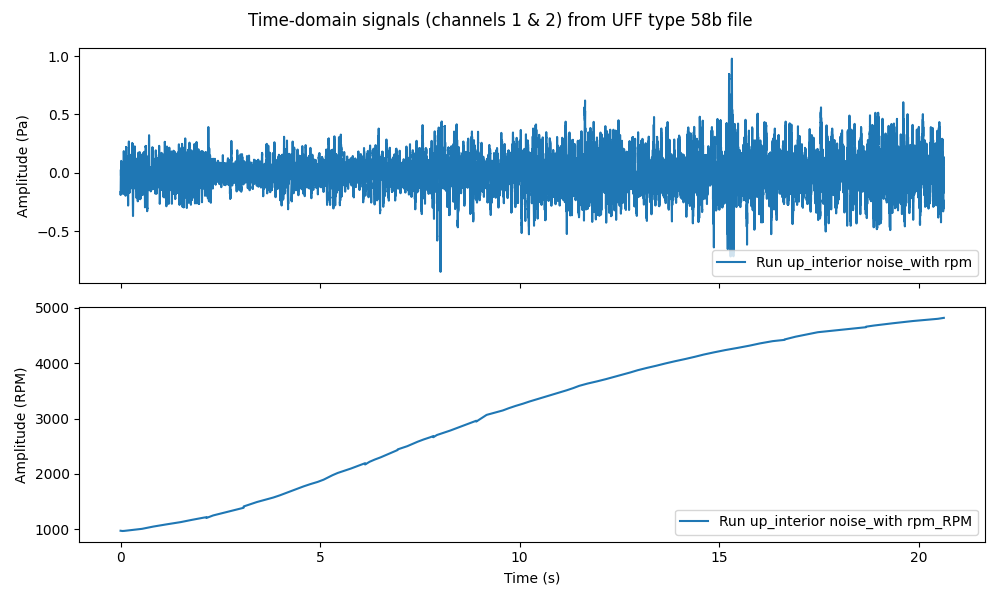

Plot the time-domain signals

Display the two extracted signals. first figure: channels 1 and 2

fig1, axs1 = plt.subplots(2, figsize=(10, 6), sharex=True)
fig1.suptitle("Time-domain signals (channels 1 & 2) from UFF type 58b file")
for i in range(2):
    time_data = fields_58b[i].time_freq_support.time_frequencies.data
    axs1[i].plot(time_data, fields_58b[i].data, label=signal_names_58b[i])
    axs1[i].set_ylabel(f"Amplitude ({signal_units_58b[i]})")
    axs1[i].legend(loc="lower right")
axs1[-1].set_xlabel("Time (s)")
plt.tight_layout()
plt.show()

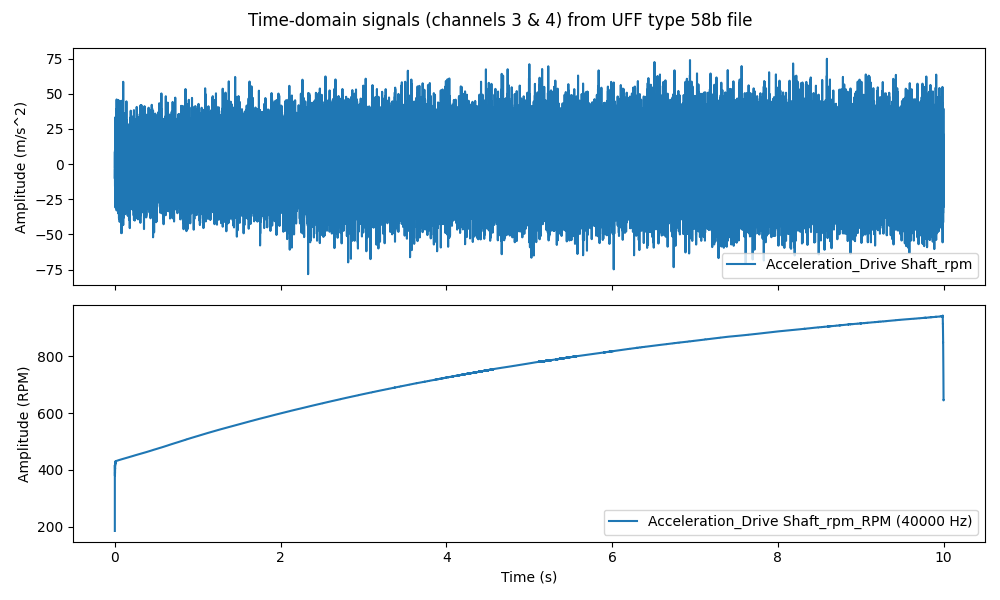

# Second figure: channels 3 and 4
fig2, axs2 = plt.subplots(2, figsize=(10, 6), sharex=True)
fig2.suptitle("Time-domain signals (channels 3 & 4) from UFF type 58b file")
for i in range(2, 4):
    time_data = fields_58b[i].time_freq_support.time_frequencies.data
    axs2[i - 2].plot(time_data, fields_58b[i].data, label=signal_names_58b[i])
    axs2[i - 2].set_ylabel(f"Amplitude ({signal_units_58b[i]})")
    axs2[i - 2].legend(loc="lower right")
axs2[-1].set_xlabel("Time (s)")
plt.tight_layout()
plt.show()

•
•

C:\Users\ansys\actions-runner\_work\pyansys-sound\pyansys-sound\examples\014_load_uff_data.py:171: UserWarning: FigureCanvasAgg is non-interactive, and thus cannot be shown
  plt.show()
C:\Users\ansys\actions-runner\_work\pyansys-sound\pyansys-sound\examples\014_load_uff_data.py:184: UserWarning: FigureCanvasAgg is non-interactive, and thus cannot be shown
  plt.show()

Compute dBA levels over time

For each signal, compute the dBA level over time using LevelOverTime.

level_objects_58b = []
for field, name in zip(fields_58b, signal_names_58b):

    if field.unit != "Pa":
        print(
            f"Skipping level computation for '{name}' since its unit is '{field.unit}' (not 'Pa')."
        )
        continue

    level_over_time = LevelOverTime(
        signal=field,
        scale="dB",
        reference_value=2e-5,
        frequency_weighting="A",
        time_weighting="Fast",
    )
    level_over_time.process()
    level_objects_58b.append(level_over_time)
    level_max = level_over_time.get_level_max()
    print(f"Max dBA level for '{name}': {level_max:.1f} dBA")

Max dBA level for 'Run up_interior noise_with rpm': 64.1 dBA
Skipping level computation for 'Run up_interior noise_with rpm_RPM' since its unit is 'RPM' (not 'Pa').
Skipping level computation for 'Acceleration_Drive Shaft_rpm' since its unit is 'm/s^2' (not 'Pa').
Skipping level computation for 'Acceleration_Drive Shaft_rpm_RPM (40000 Hz)' since its unit is 'RPM' (not 'Pa').

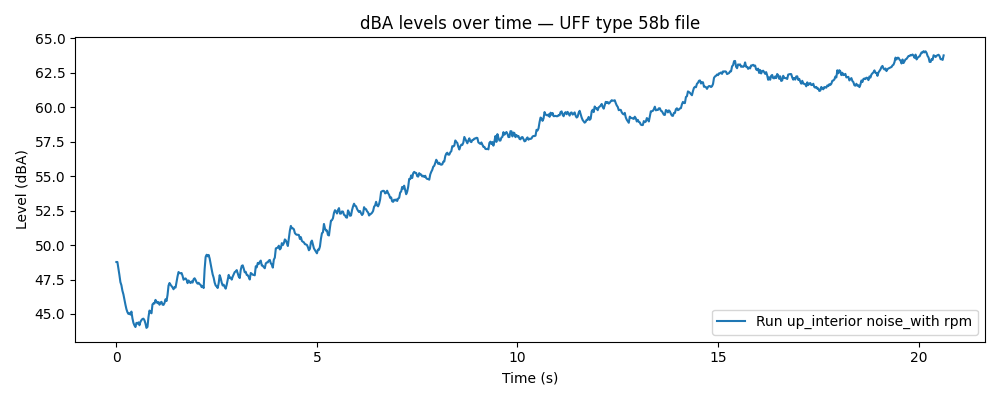

Plot dBA levels over time

Display the computed dBA level over time for one signal.

plt.figure(figsize=(10, 4))
plt.title("dBA levels over time — UFF type 58b file")

level_obj = level_objects_58b[0]
name = signal_names_58b[0]
time_scale = level_obj.get_time_scale()
level_data = level_obj.get_level_over_time()
plt.plot(time_scale, level_data, label=name)

plt.xlabel("Time (s)")
plt.ylabel("Level (dBA)")
plt.legend(loc="lower right")
plt.tight_layout()
plt.show()

C:\Users\ansys\actions-runner\_work\pyansys-sound\pyansys-sound\examples\014_load_uff_data.py:231: UserWarning: FigureCanvasAgg is non-interactive, and thus cannot be shown
  plt.show()

Conclusion

This example demonstrated how to:

• Load UFF/UNV files using the pyuff package

• Check the files’ contents

• Verify that the time data is evenly spaced

• Extract time-domain signals and convert them into DPF fields using CreateSignalField

• Compute and display dBA levels over time using LevelOverTime

Only data blocks of (type 58 and 58b) with evenly spaced time data are supported by PyAnsys Sound. The pyuff package can be installed as an optional dependency via pip install ansys-sound-core[full].
